Components (1)

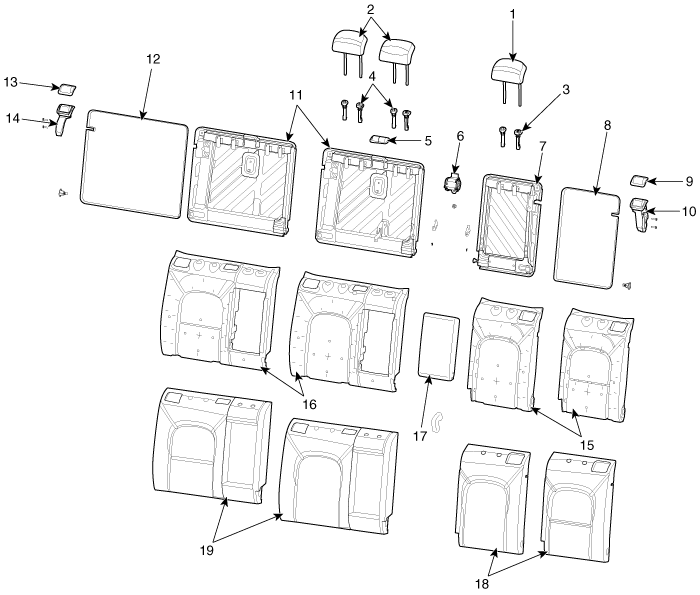

[Rear seat back]
(5Door)


1. Rear seat headrest [LH]
2. Rear seat headrest [RH]
3. Rear seat headrest guide [LH]
4. Rear seat headrest guide [RH]
5. Rear seat belt outlet cover
6. Rear center seat belt retractor
7. Rear seat back structure [LH]
8. Rear seat back panel carpet [LH]
9. Rear seat latch cover [LH]
10. Rear seat latch assembly [LH]
11. Rear seat back structure [RH]
12. Rear seat back panel carpet [RH]
13. Rear seat latch cover [RH]
14. Rear seat latch assembly [RH]
15. Rear seat back pad [LH]
16. Rear seat back pad [RH]
17. Rear seat armrest assembly
18. Rear seat back cover [LH]
19. Rear seat back cover [RH]

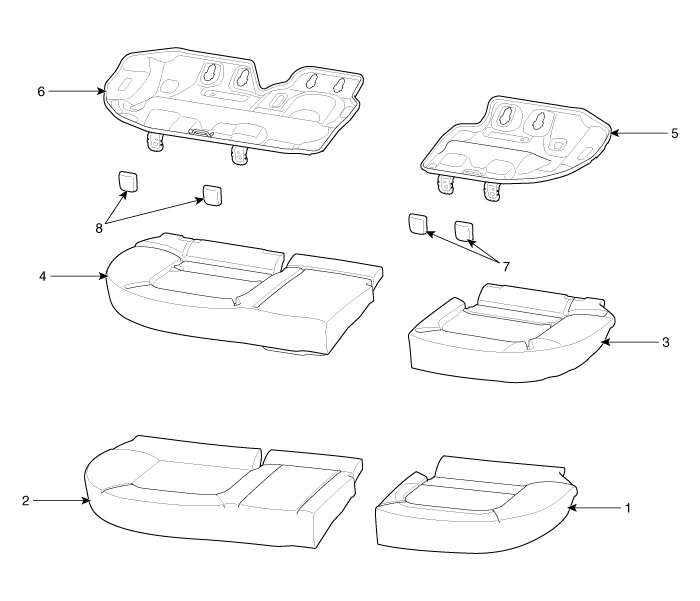

Components (2)
[Rear seat cushion]
(5Door)


1. Rear seat cushion cover [LH]
2. Rear seat cushion cover [RH]
3. Rear seat cushion pad [LH]
4. Rear seat cushion pad [RH]
5. Rear seat cushion frame [LH]
6. Rear seat cushion frame [RH]
7. Rear seat cushion mounting cover [LH]
8. Rear seat cushion mounting cover [RH]

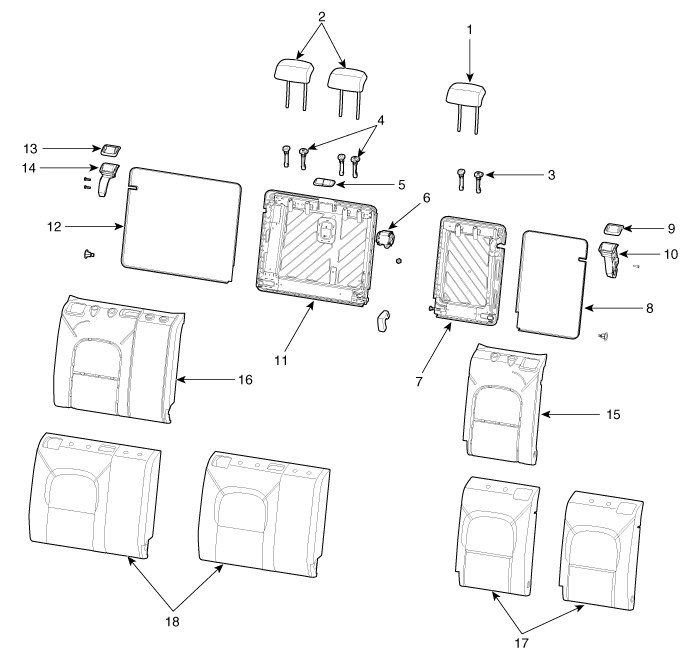

Components (3)
[Rear seat back]
(3Door)


1. Rear seat headrest [LH]
2. Rear seat headrest [RH]
3. Rear seat headrest guide [LH]
4. Rear seat headrest guide [RH]
5. Rear seat belt outlet cover
6. Rear center seat belt retractor
7. Rear seat back structure [LH]
8. Rear seat back panel carpet [LH]
9. Rear seat latch cover [LH]
10. Rear seat latch assembly [LH]
11. Rear seat back structure [RH]
12. Rear seat back panel carpet [RH]
13. Rear seat latch cover [RH]
14. Rear seat latch assembly [RH]
15. Rear seat back pad [LH]
16. Rear seat back pad [RH]
17. Rear seat back cover [LH]
18. Rear seat back cover [RH]

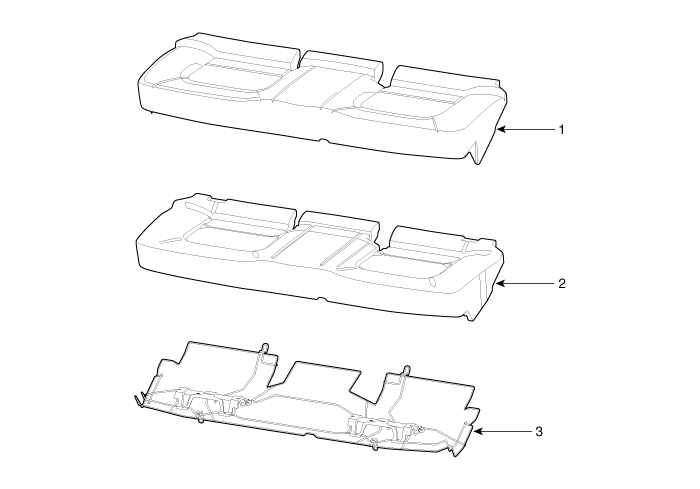

Components (4)
[Rear seat cushion]
(3Door)


1. Rear seat cushion cover
2. Rear seat cushion pad
3. Rear seat cushion frame assembly

Rear Seat
...

Rear Seat Assembly Components and components location
