Kia Cee'd JD Service Manual / Body (Interior and Exterior) / Floor Console / Components and components location

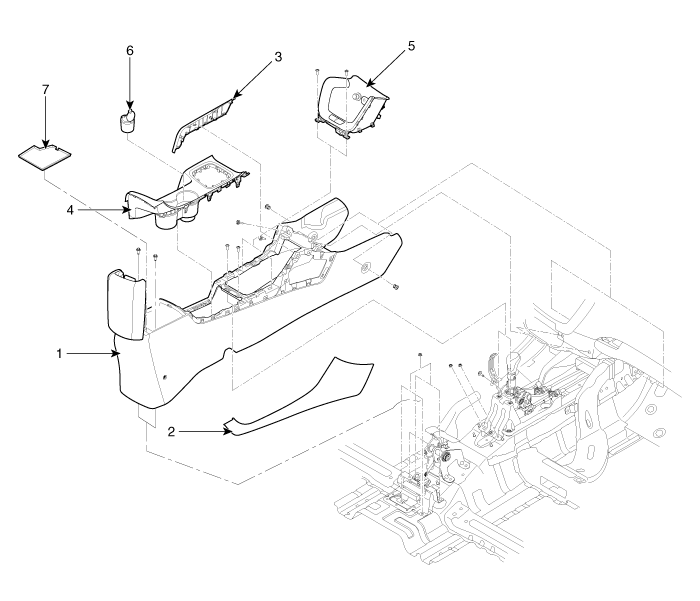

Components

1. Floor console assembly
2. Console garnish [RH]
3. Console garnish [LH]
4. Console upper cover

5. Console tray
6. Portable ash tray
7. Console tray mat

Floor Console

...

Floor Console Assembly Components and components location
