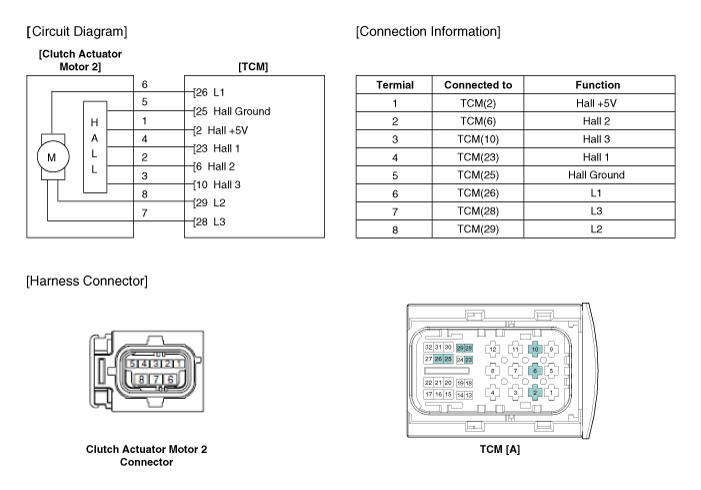

Kia Cee'd: Dual Clutch Transmission Control System / Clutch Actuator Motor 2 (Even Gear) Schematic diagrams

Clutch Actuator Motor 2 (Even Gear) Specifications

Specification Clutch Actuator Motor 2 (Even Gear) ▷ Specification   Item  Specifications Operating condition (°C) °F ...

Clutch Actuator Motor 2 (Even Gear) Repair procedures

Inspection 1. Turn off the ignition switch. 2. Disconnect the clutch motor connector (A). 3. Meas ...
